600mm UV-DTF Printer Complete Solution for advanced printing needs

Description

1. UV DTF (Direct-to-Film):
   • Refers specifically to printing on a transfer film that can later be applied to various objects.
   • The process involves:
     1. Printing the design in reverse on a special adhesive film.
     2. Applying a lamination layer.
     3. Transferring the print to the desired surface.
   • Great for irregular surfaces or objects that can’t fit into a printer.
2. UV Direct-to-Object Printing:
   • This is commonly just referred to as UV Printing or UV Direct Printing.
   • It involves printing directly onto the surface of an object using UV inks.
   • UV light cures the ink instantly, ensuring strong adhesion and durability.
   • Suitable for flat or slightly curved objects like phone cases, awards, or signage.

---

Key Differences:

• UV DTF: Indirect printing method using a film for transfers. Versatile for odd shapes and surfaces.
• UV Direct Printing: Direct method for printing straight onto the object. Best for items that can fit into the machine’s print area.

Each has its advantages, depending on your production needs.

---

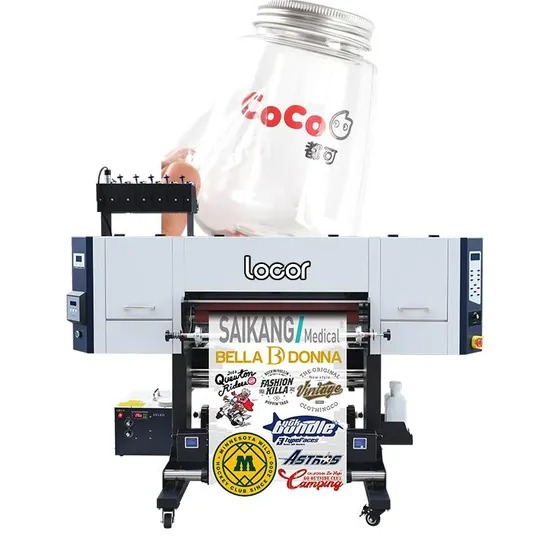

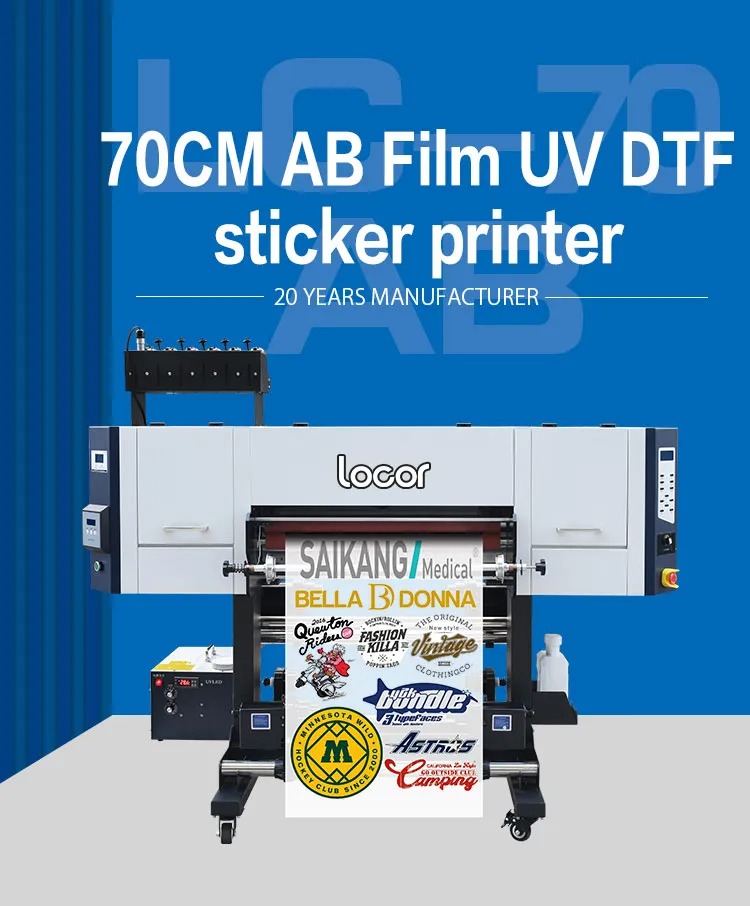

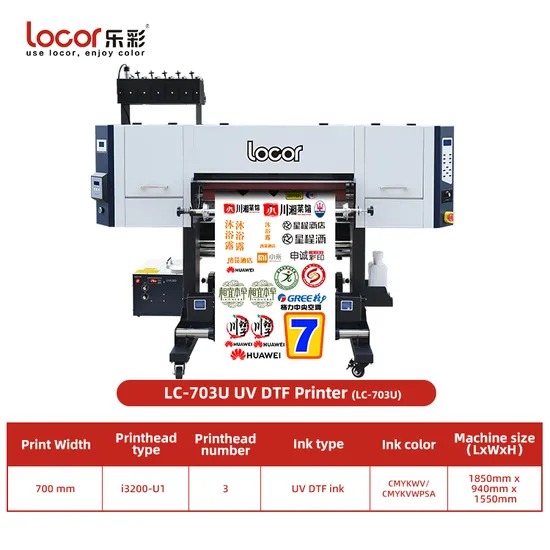

600mm UV-DTF Printer Complete Solution

This 600mm UV-DTF Printer is a comprehensive package for advanced printing needs, combining precision, versatility, and high-speed performance. Ideal for businesses requiring detailed, durable designs, the system integrates EPSON® XP600 Printheads, PRINT RIP Software, and consumables for a ready-to-use solution.

---

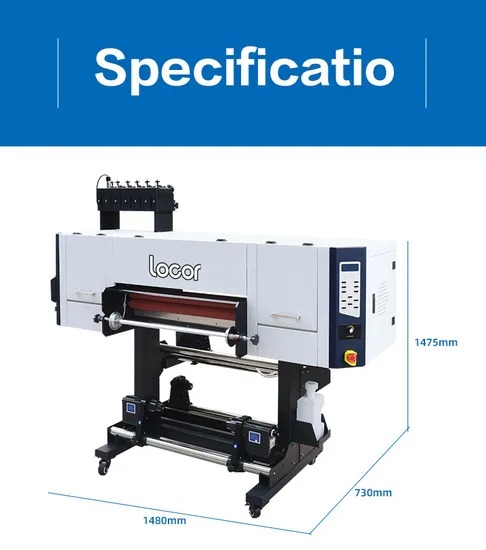

Specifications and Features

Printing Capabilities

• Printing Width:
  • 600mm effective printing area.
  • 700mm rolled media feeding width for seamless material handling.
• Resolution Options:
  • 720×720 DPI (4 pass) – Draft Mode (~24m²/h).
  • 720×1080 DPI (6 pass) – Production Mode (~15m²/h).
  • 720×1440 DPI (8 pass) – Quality Mode (~12m²/h).

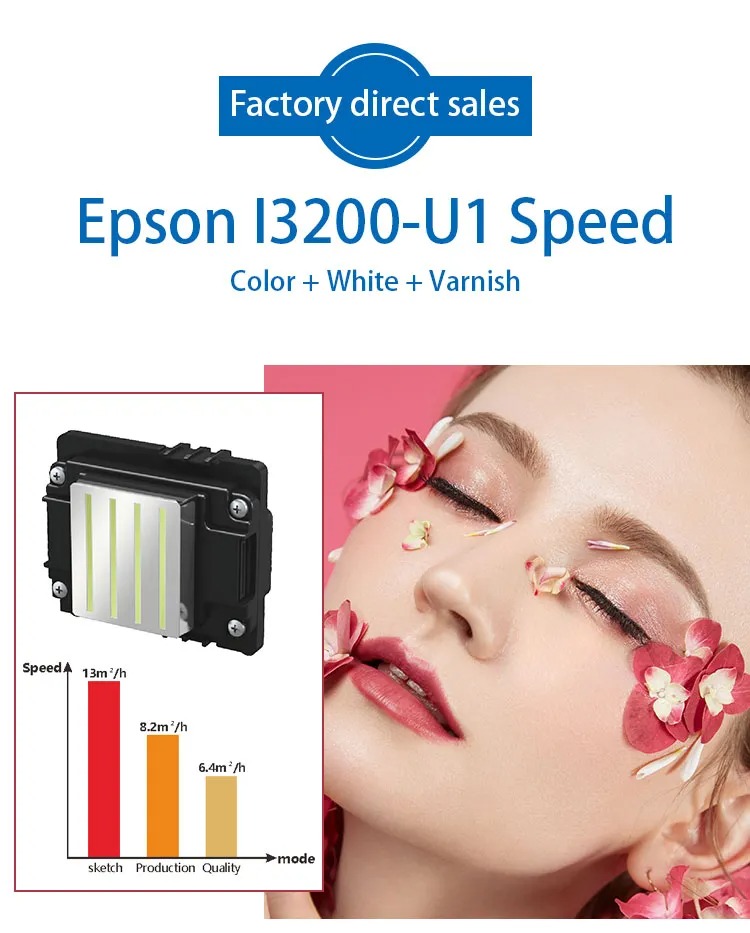

• Printheads:
  • Three EPSON XP600 Printheads (CMYK/White/Varnish), suitable for UV, solvent, eco-solvent, water-based, and DTF inks.
• Bi-Directional Printing: Speeds up output while maintaining precision.

Ink and Supplies

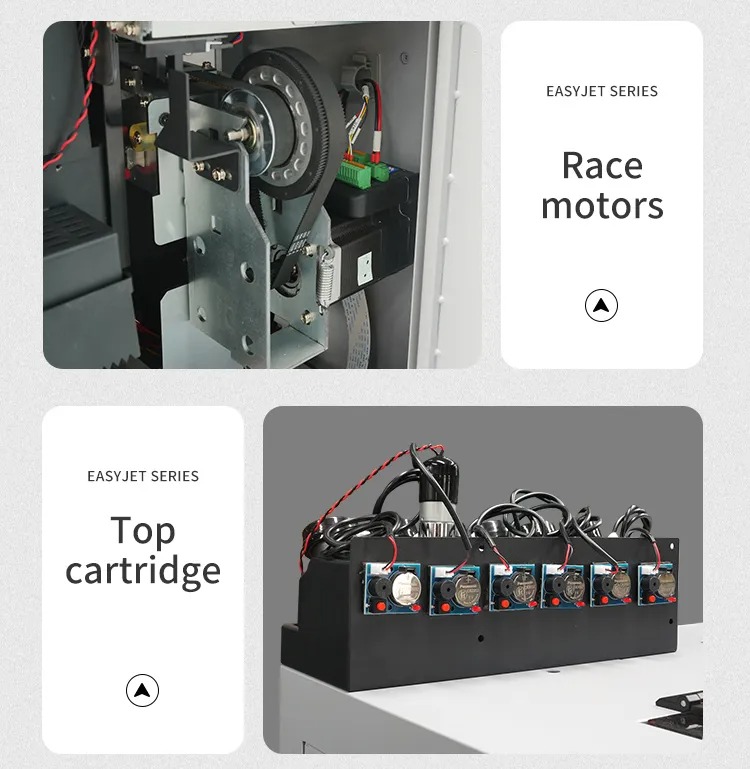

• Ink System:
  • Negative Pressure Continuous Ink Supply System (CISS) for uninterrupted operation.
  • Includes CMYK/White UV-Curable Inks, varnish, and UV ink cleaner.

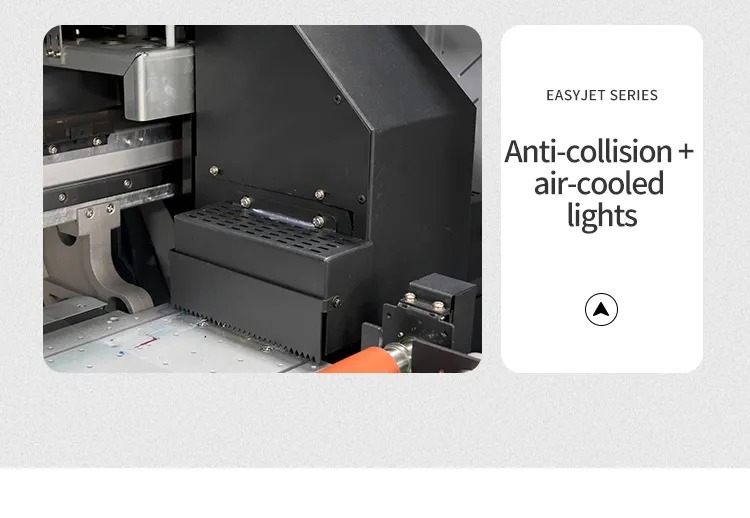

• UV Curing:
  • Utilizes three water-less UV lamps for efficient curing.
  • Adjustable lamp power via dial for customized settings.

Built-in Laminator

• Lamination Capability:
  • Integrated heating element (800W, intermittent operation) for film application.
  • Maximum temperature of 100°C; recommended laminating range 50-60°C.
• Cold Application: Supports cold peel after lamination for enhanced workflow flexibility.

Ease of Use and Maintenance

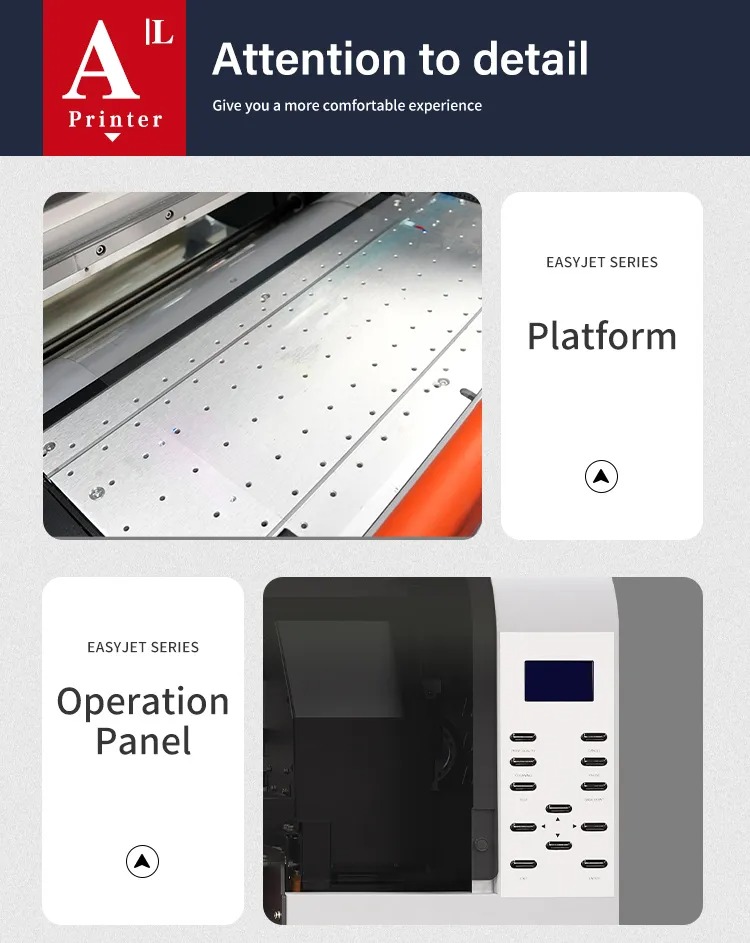

• Print Controller: Includes printhead temperature monitoring and alignment tools for fine-tuned control.
• Automatic Maintenance:
  • Built-in cleaning functions prevent ink blockages.
  • Automatic lifting printhead ink capping system ensures protection and ease of alignment.
• Silicon-Sealed Cables: Prevent over-flushed ink spillage and speed up installation.

Connectivity and Power

• Data Transfer:
  • High-speed 100M network cable ensures stable and reliable operation.
• Power Usage:
  • Operates on household 220V electricity.
  • Standby Power: 100W (without laminator heating).
  • Maximum Power: 700W + 1500W (laminator heating active).

Consumables and Accessories

• Included Consumables:
  • 600mm UV-DTF Film Rolls (62cm wide, 100m length, A/B rolls, 190-micron transparent).
  • CMYK/White UV-curable inks, varnish, and premium UV ink cleaner (1L each).
  • Generic alcohol spray cleaner (500ml) for surface preparation.
• Software and Training:
  • PRINT Premium 22 RIP Software with white/varnish channel support.
  • Training course for software and printer operation.

---

Applications

This printer is designed for creating UV DTF transfers, custom stickers, film-based designs, and more. The integrated laminator and high-resolution printing make it ideal for professional-grade applications.

---

Advantages

1. High Efficiency: Bi-directional printing and automated cleaning reduce downtime.
2. Flexible Usage: Supports multiple ink types and a variety of substrates.
3. Compact and User-Friendly: Integrated laminator and plug-and-play setup for ease of use.
4. Customizable Output: Multiple resolution settings and UV lamp controls for tailored results.

---

Warranty and Support

• Warranty: 1-year warranty included.
• Optional Accessories: Water chiller for LED UV lamp cooling (up to 4 printheads).

The 600mm UV-DTF Printer Complete Set is an all-in-one package for small-to-medium businesses seeking precise, efficient, and versatile printing capabilities.
