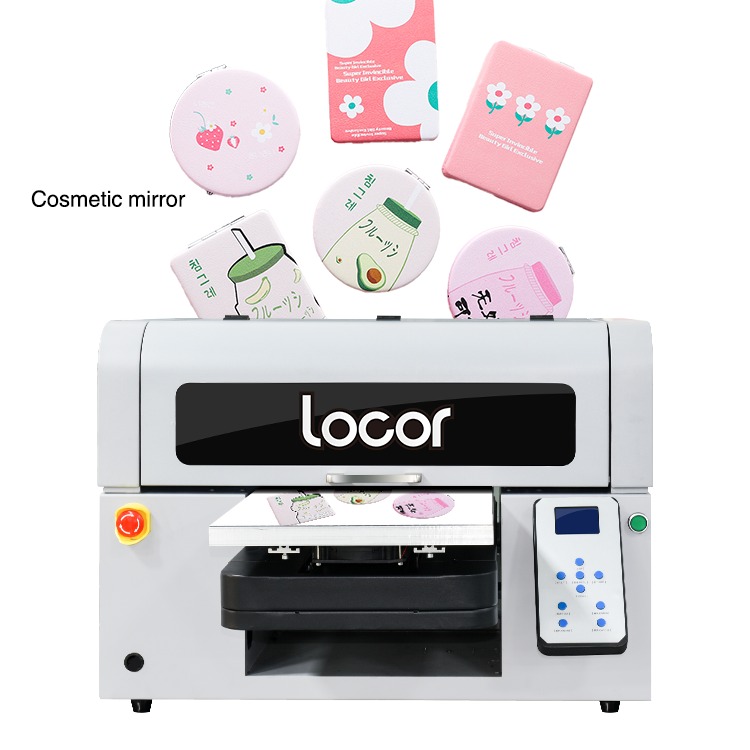

Locor A3 UV LED Flatbed Printer – Multifunctional UV DTF Printing Machine



The Locor A3 UV LED Flatbed Printer is a versatile, high-precision machine that offers direct printing on a wide range of materials. It’s perfect for businesses looking to expand their product offerings and cater to custom printing needs. Here’s what you can do with it:

What You Can Do with the Locor A3 UV LED Flatbed Printer:

1. Phone Case Customization
   Print high-quality, full-color designs directly onto phone cases. This is ideal for personalized gifts, phone accessory businesses, and custom product shops.

2. Custom Glass Printing
   Print detailed designs and artwork on glass items such as mugs, decorative glass pieces, awards, and promotional items.

3. Metal Printing
   Print durable, vibrant designs on metal surfaces, making it perfect for customized metal signage, promotional items, and branded merchandise.

4. Acrylic Printing
   Use this printer for printing custom acrylic products, such as signage, displays, and trophies. The UV ink ensures long-lasting prints that resist fading.

5. PVC & Plastic Printing
   Print directly onto PVC and other plastic materials for custom products, such as business cards, signs, and plastic promotional items.

6. Wood Printing
   Customize wooden items like plaques, decorative pieces, and furniture with vibrant, durable prints that enhance their aesthetic appeal.

7. UV DTF Film Transfers for Curved Surfaces

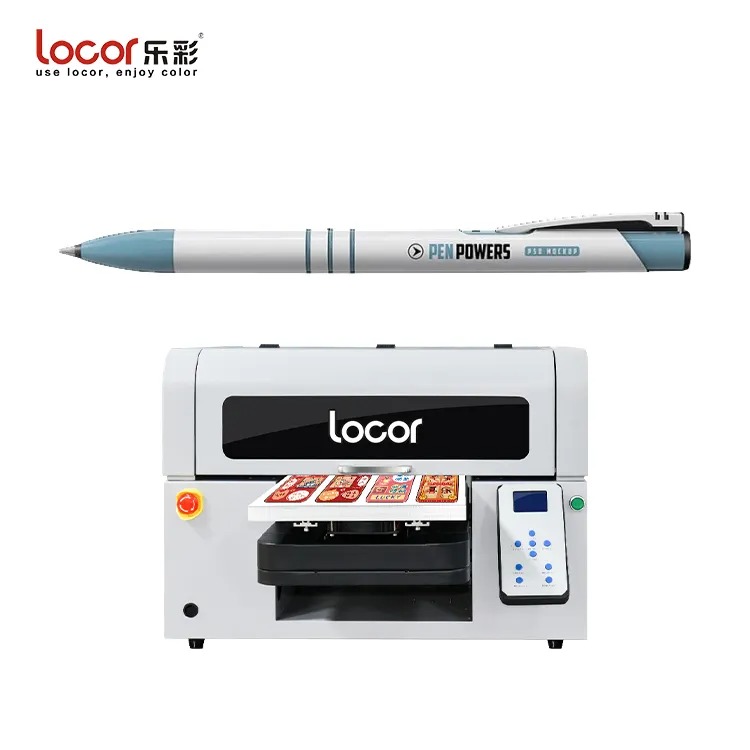

   This machine can also print on UV DTF films, allowing you to transfer designs onto curved or irregular surfaces (e.g., bottles, mugs, and pens), expanding your product range.

8. Multifunctional Printing for Small Businesses
   The Locor A3 UV LED Flatbed Printer is perfect for small businesses looking to offer a wide variety of custom printed items. You can create personalized products on demand for a diverse customer base.

9. High-Precision and Durable Printing
   The UV LED technology provides high-resolution, durable prints that are resistant to wear, fading, and environmental factors. Great for items exposed to the elements or daily use.

---

---

Overview

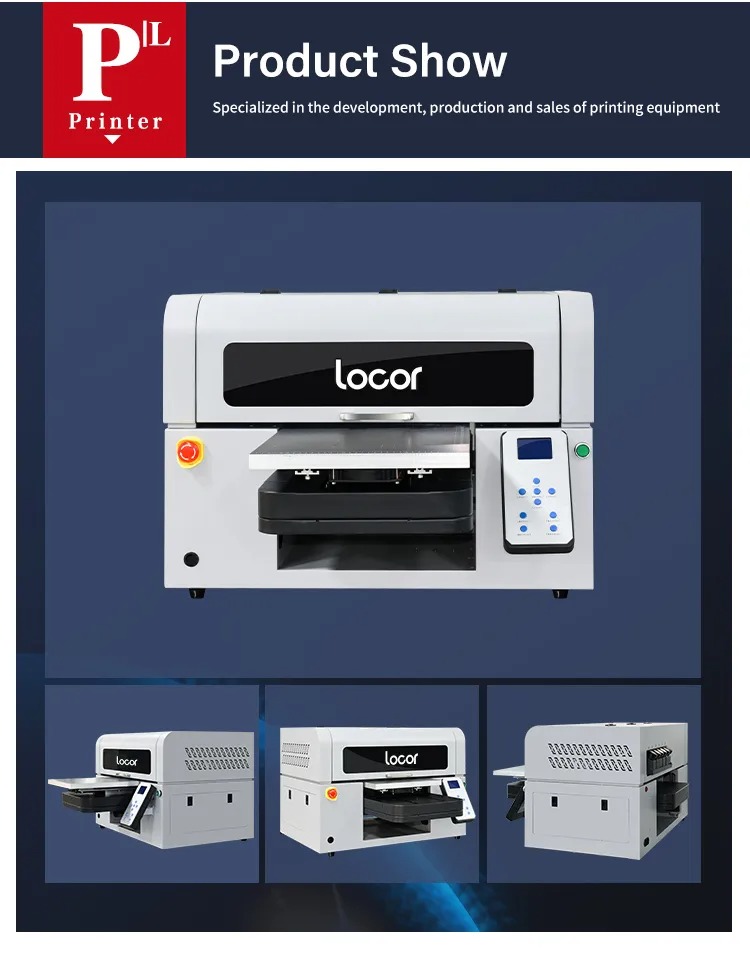

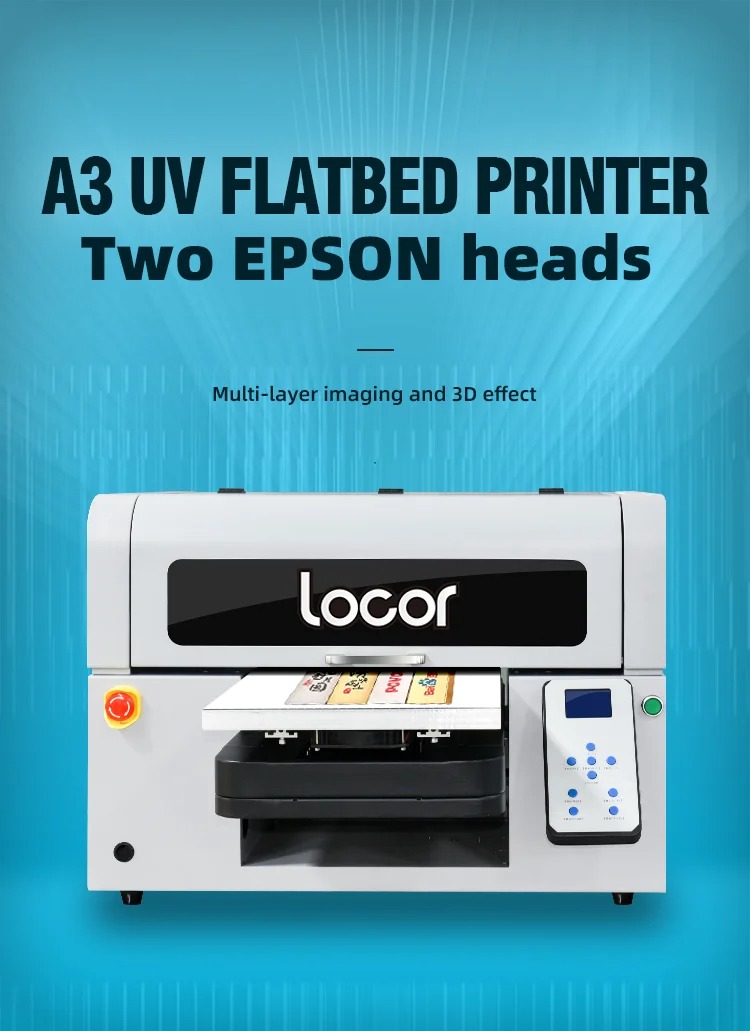

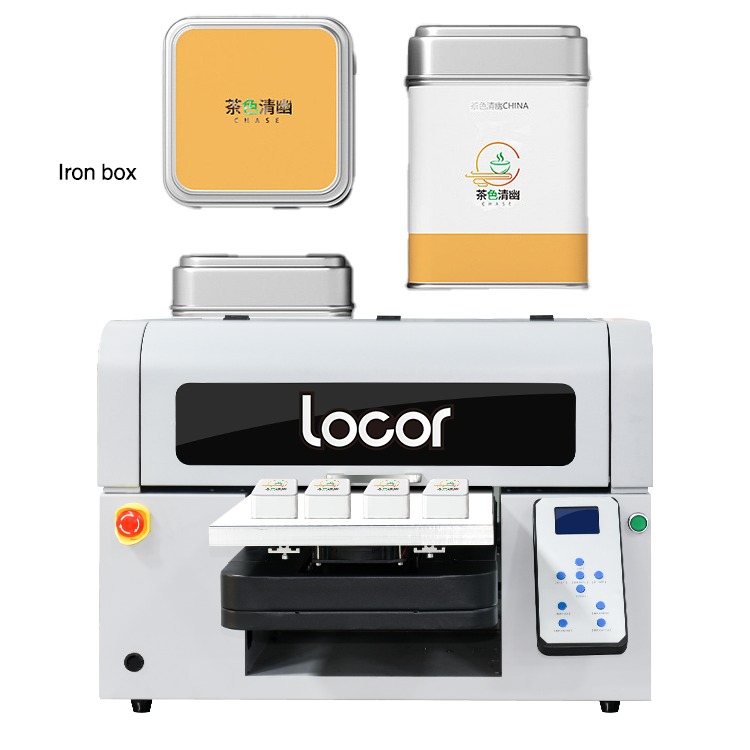

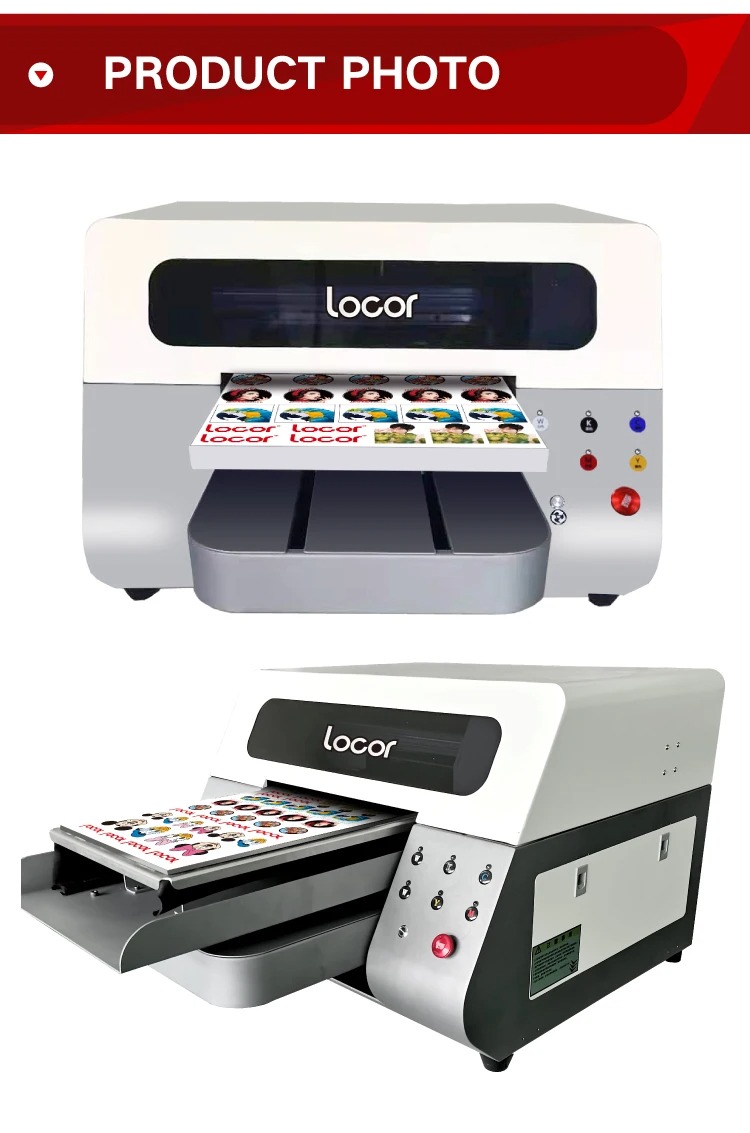

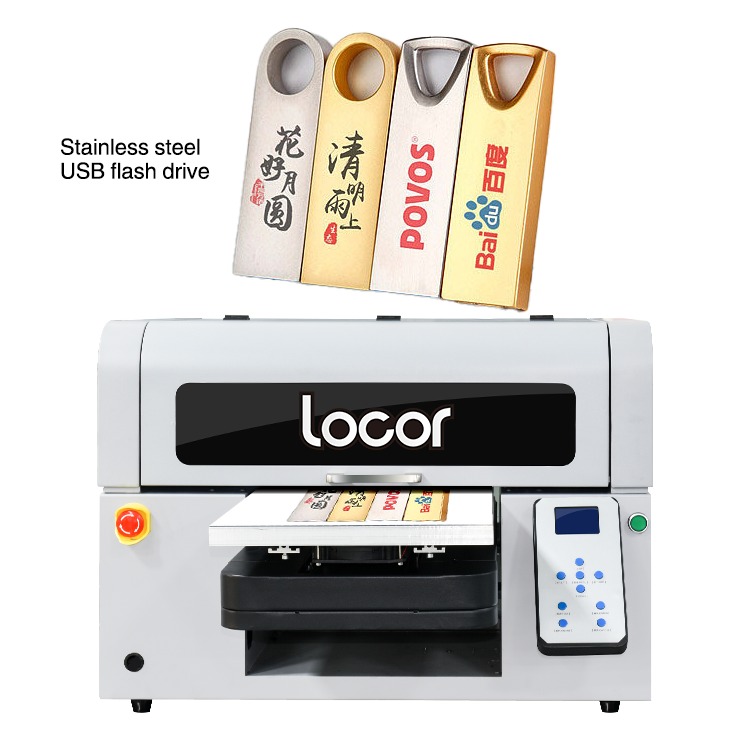

The Locor A3 UV LED Flatbed Printer is a compact, high-precision UV printer designed for direct printing on multiple surfaces. It prints directly on items like phone cases, glass, metal, acrylic, PVC, wood, and more. The same machine can also print UV DTF film transfers for curved or irregular surfaces, giving full flexibility to small businesses and production environments.

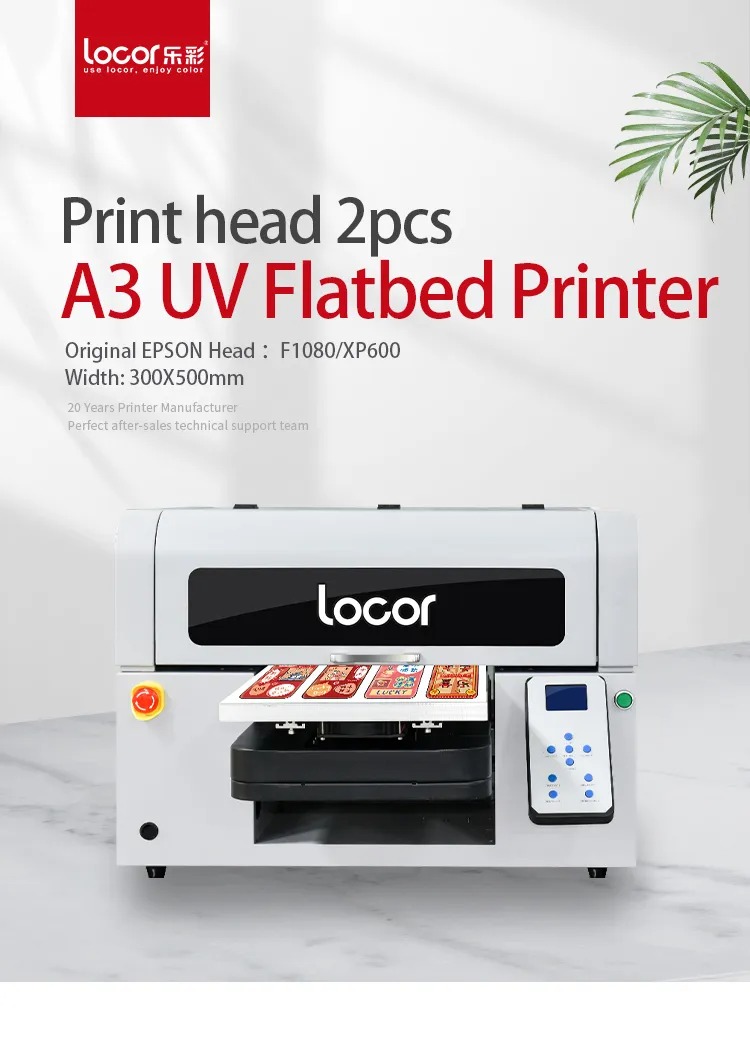

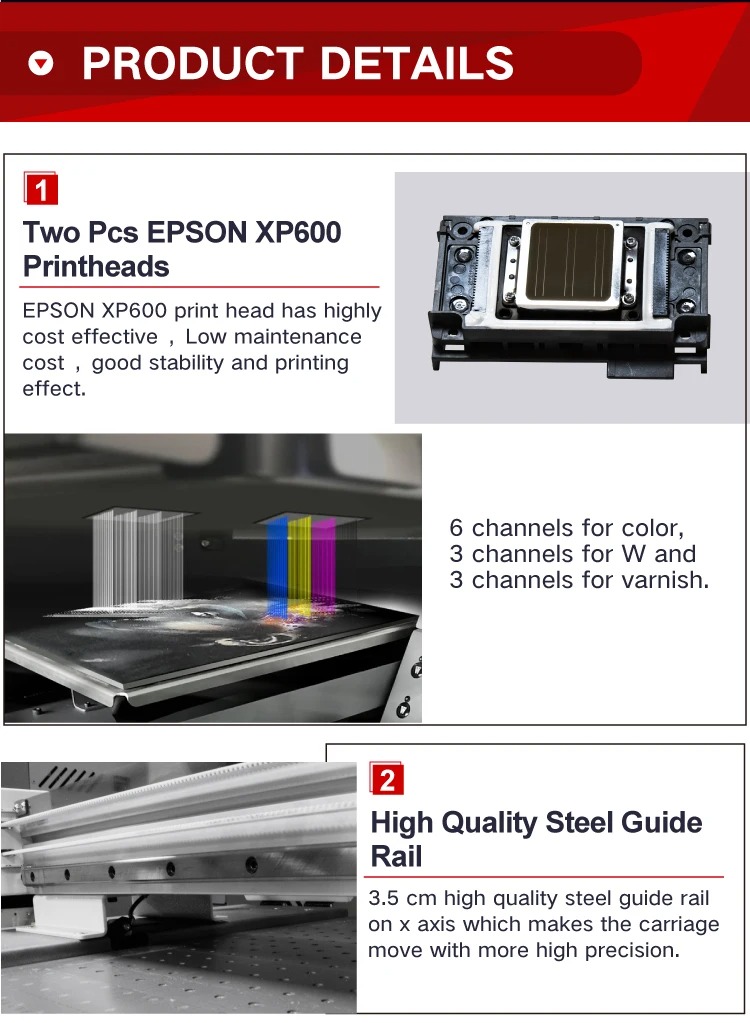

Equipped with dual Epson XP600 printheads, it delivers CMYK + White + Varnish printing in a single pass, ensuring vibrant, durable, and scratch-resistant results.

Key Features
• Dual Epson XP600 Printheads
• CMYK + White + Varnish Printing
• Direct-to-Material and UV DTF Film Printing

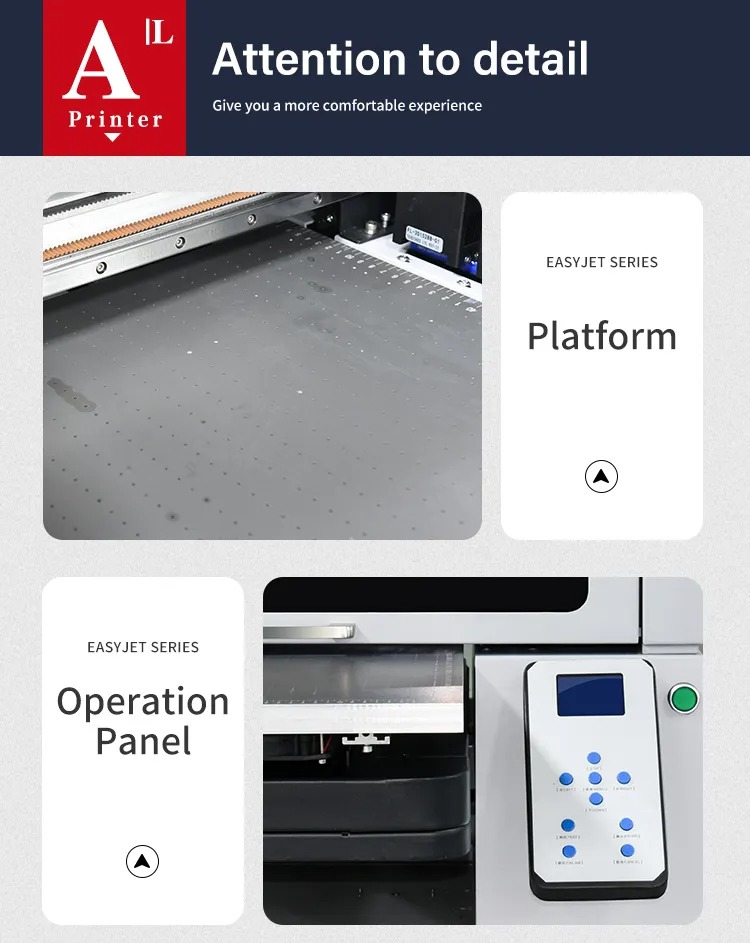

• Vacuum Suction Platform for Steady Media Handling
• Positive Pressure Continuous Ink Supply System (CISS)
• Compact Desktop Design – Ideal for Offices or Studios
• Works with Windows 10 Operating Systems
• High Durability, Fast Printing, and Precision Control

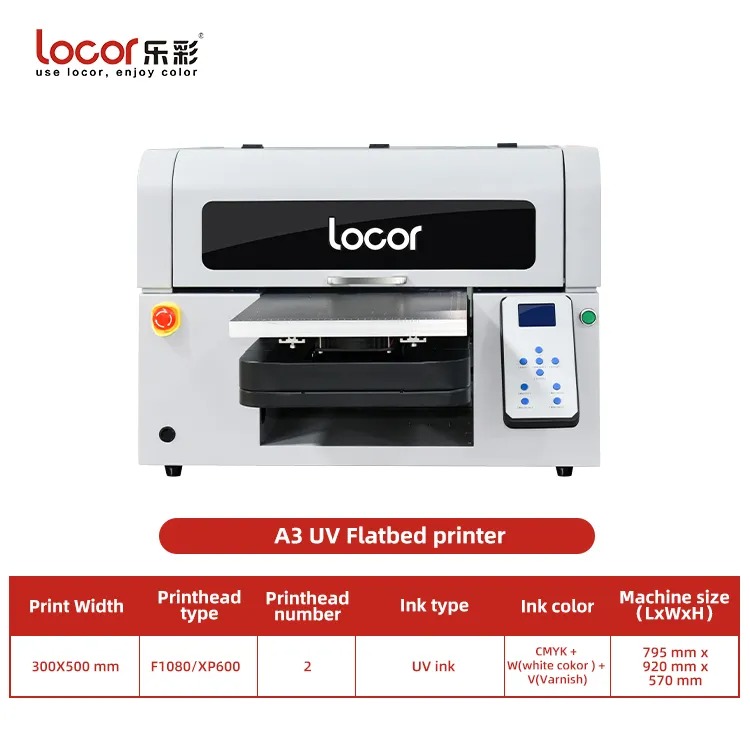

Specifications

Specification	Details (A3 Model)
Print Head	Epson XP600 × 2
Max Print Size	350 × 530 mm
Resolution	360×720dpi, 360×1080dpi, 720×720dpi
Print Speed	4 pass: 3 m²/h • 6 pass: 2 m²/h • 8 pass: 1 m²/h
Ink Type	UV Ink
Ink Colors	CMYK + White + Varnish
Ink System	Positive Pressure CISS, 500ml Capacity
Media Thickness	0–120mm
Printable Media	Glass, Wood, Tile, Leather, Acrylic, Metal, Phone Cases
Connectivity	USB 2.0 / Network Port
RIP Software	Photoprint
Operating System	Windows 7/10 (i5/i7 CPU Recommended)
Power Supply	220V / 110V, 50–60Hz
Power Consumption	1200W

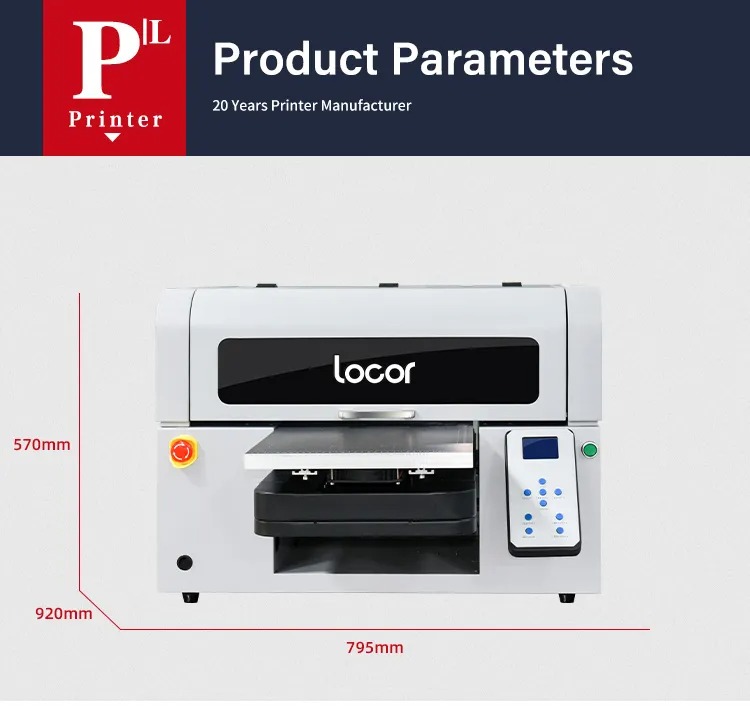

Machine Size (L×W×H)	93 × 72 × 52 cm (120 kg)
Package Size (L×W×H)	104 × 90 × 78 cm (180 kg)
Operating Environment	Temperature: 20–35°C, Humidity: 35–70% RH

Applications
• Phone Cases
• Metal Tags and Tools
• Wooden Plaques
• Glass Panels
• Acrylic Displays
• Bottles, Tubes, and Promotional Items

Included Software & Accessories
• Photoprint RIP Software
• Ink System Installed
• USB Cable and Network Connection
• User Manual and Setup Guide

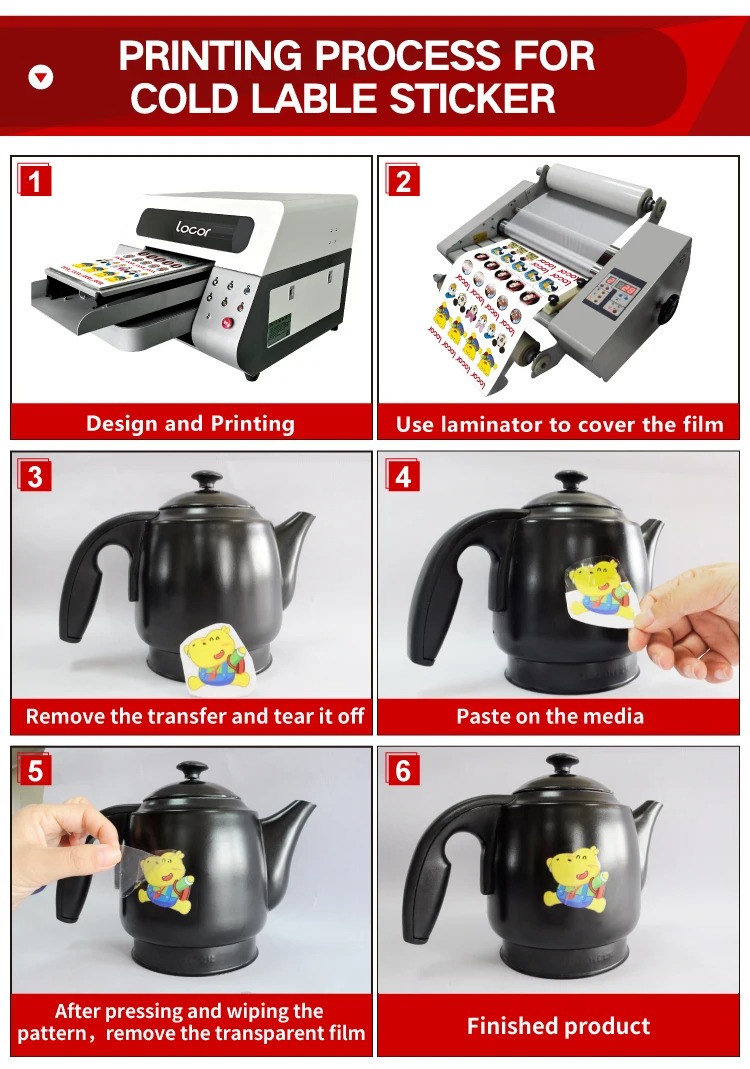

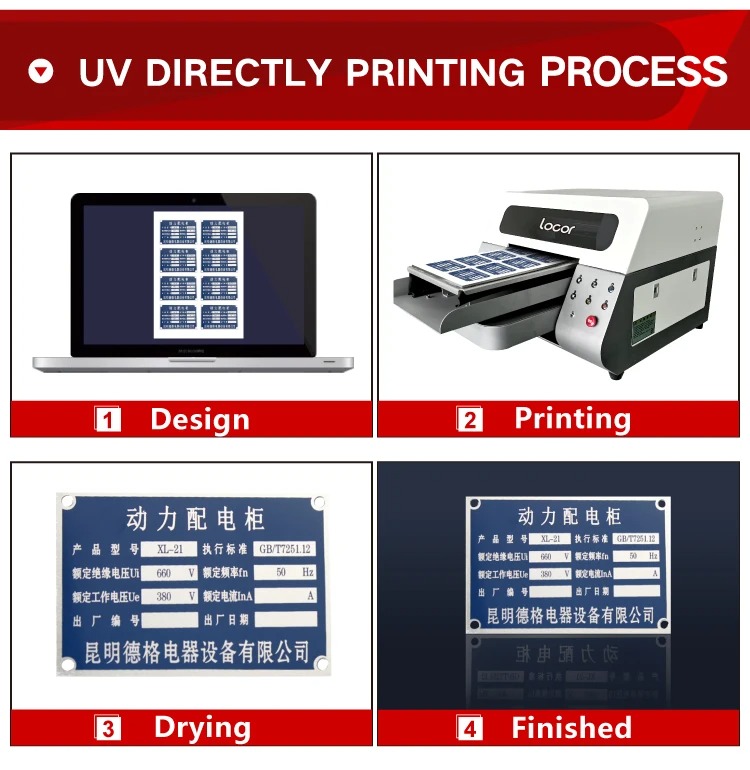

Printing Process
The Locor A3 UV LED Flatbed Printer combines direct UV printing and UV DTF transfer technology in one system. Print directly on rigid materials or print on UV film and transfer to curved or textured surfaces. The built-in varnish adds gloss and protection to every print.

UV Printer Notice

UV printers are precision machines that require a clean and stable environment. Proper operation and maintenance are essential to ensure consistent performance.

Key Points:

• Use the printer regularly to prevent ink drying or nozzle blockage.
• Avoid exposure to dust, humidity, and direct sunlight.
• Use only approved UV inks and cleaning solutions.
• Run daily nozzle checks and head cleaning cycles before printing.
• Always power off using the correct shutdown process to protect the printhead.

Maintenance Schedule

• Daily: Clean printhead surface, wiper, and cap top.
• Weekly: Deep clean the printhead and inspect ink flow.
• Monthly: Check UV lamp alignment, cooling fans, and firmware updates.

Important Notes

• Printhead clogging, UV lamp wear, or damage caused by incorrect ink use are not covered under warranty.
• Replacement of printheads, lamps, and dampers is considered part of normal machine maintenance.
• If the printer will not be used for an extended period, flush the ink system and store the machine in a controlled environment.
