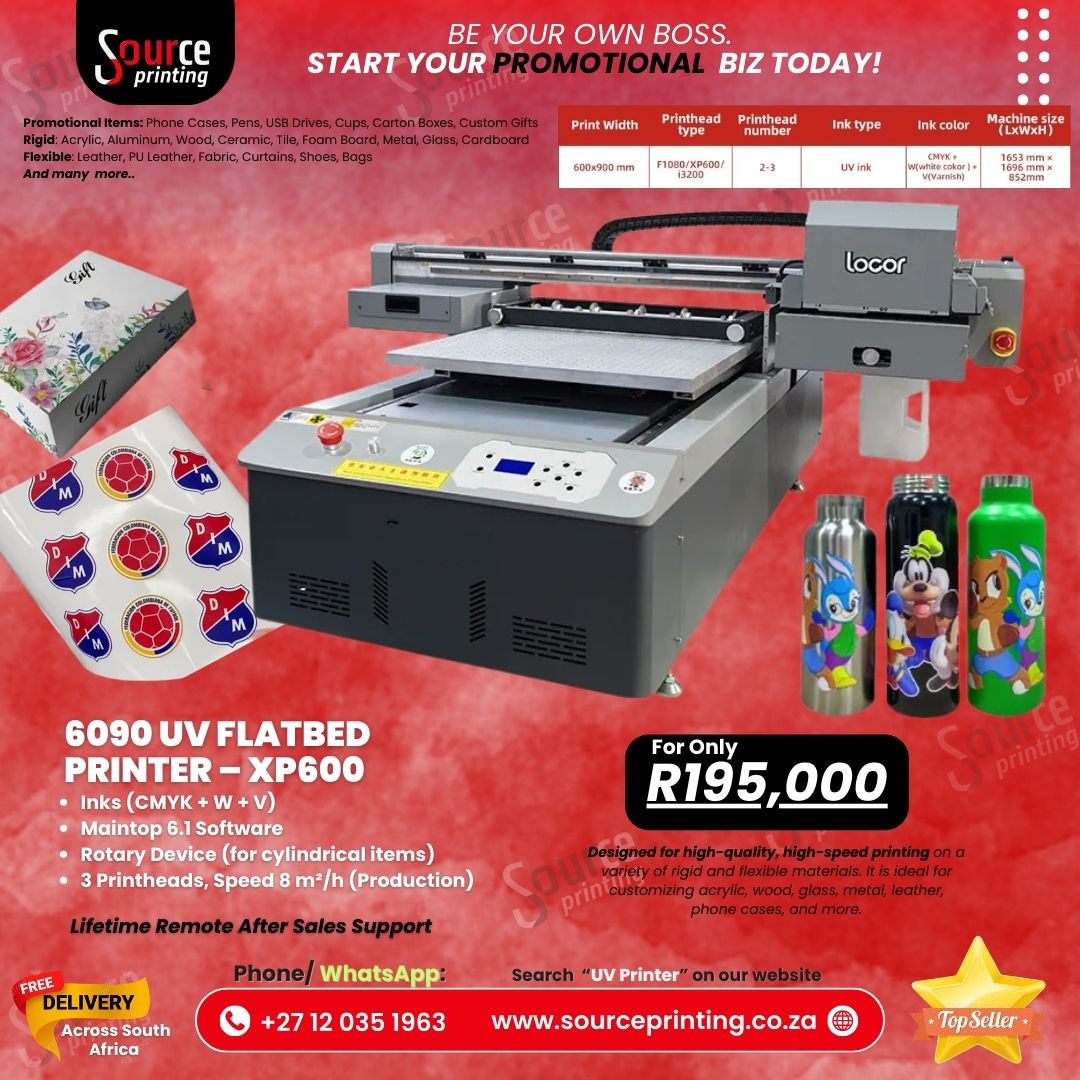

LC-6090 UV Flatbed Printer – XP600

Description

The LC-6090 UV Flatbed Printer – XP600 is a highly versatile, high-quality, and efficient printer that can be used for a wide range of applications. Here’s what you can do with it:

What You Can Do with the LC-6090 UV Flatbed Printer:

1. Customizing Acrylic: Create detailed designs on acrylic sheets, perfect for signage, displays, and decorative pieces.

2. Printing on Wood: Print directly onto wooden surfaces to create custom furniture, artwork, or signage.

3. Personalized Glass Items: Customize glass for items like awards, decorations, or even phone cases.

4. Metal Printing: Print on metal for applications like branded merchandise, custom plaques, and industrial designs.

5. Leather Printing: Print on leather for fashion, accessories, or custom furniture.

6. Phone Case Customization: Direct-to-object printing for personalized phone cases, making it ideal for small businesses offering custom products.

7. Printing on Cylindrical Objects: With the rotary device included, you can print on cylindrical items like bottles, mugs, pens, and more.

Key Features:

• Inks (CMYK + White + Varnish): For high-quality color printing, including white and varnish for additional effects.

• Rotary Device: Ideal for printing on cylindrical objects such as bottles, mugs, and more.

• Maintop 6.1 Software: Software for managing and operating the printer, providing the necessary tools for high-precision work.

• Automatic Ink Circulation: Ensures the inks are kept in optimal condition, reducing the risk of clogging.

• Suction Platform & Pre-heating System: For better material adhesion and faster drying times.

Potential Business Uses:

• Small Business Customization: Ideal for custom print shops, promotional product businesses, or bespoke gifts and accessories.

• Industrial & Commercial Printing: Suitable for larger businesses that need high-volume production for branded products, signage, or unique merchandise.

---

---

The LC-6090 UV Flatbed Locor  Printer is designed for high-quality, high-speed printing on a variety of rigid and flexible materials. It is ideal for customizing acrylic, wood, glass, metal, leather, phone cases, and more.

Excludes Delivery & Installation

Includes:

• Inks (CMYK + W + V)
• Maintop 6.1 Software
• Rotary Device (for cylindrical items)
• Machine Legs

---

Key Specifications

General Information

• Model: LC-6090 UV Flatbed Printer
• Printhead: Epson XP600 (3 Printheads)
• Printing Mode: Uni-Directional & Bi-Directional
• Maximum Print Size: 600mm x 900mm
• Printing Precision:
• • 360 x 720 dpi
  • 360 x 1080 dpi
  • 360 x 1440 dpi
  • 360 x 2180 dpi

• Printing Speed:

  • 8 m²/h (Production Mode)
  • 5.5 m²/h (Standard Mode)
  • 3 m²/h (High-Quality Mode)

---

Ink System & Printing Features

• Ink Type & Color Options:

  • CMYK/LC/LM/W/V – Suitable for hard surfaces
  • CMYK/LC/LM/W/V – Suitable for soft real leather or PU leather

• Ink Supply System:

  • Negative Pressure CISS with Ink Shortage Warning

• Ink Pre-Heating System:

  • Auto Ink Pre-Heating through Damper Heating Device

• White Ink Mixing & Circulation:

  • Runs automatically after the machine is switched on

• Printing Modes:

  • White Only
  • Color Only
  • Varnish Only
  • White + Color + Varnish

---

Media & Material Compatibility

• Maximum Material Thickness: 150mm
• Supports Round Items: 40mm – 120mm Diameter
• Printable Materials:
• • Rigid: Acrylic, Aluminum, Wood, Ceramic, Tile, Foam Board, Metal, Glass, Cardboard
  • Flexible: Leather, PU Leather, Fabric, Curtains, Shoes, Bags
  • Promotional Items: Phone Cases, Pens, USB Drives, Cups, Carton Boxes, Custom Gifts

• File Formats Supported:

  • TIFF, JPG, PNG, PostScript, EPS, PDF, and more

• Color Control:

  • ICC-Based Color Management
  • Curves & Density Adjustment

• Media Handling:

  • Suction Platform (Individually controlled for precise positioning)

---

Connectivity & Software

• Data Transfer Interface: High-Speed 1000m Network Port
• RIP Software: Maintop 6.1 (Photoprint Optional)
• Operating System: Windows 10

---

Power & Environmental Requirements

• Temperature: 20°C – 35°C
• Humidity: 35% – 70% RH
• Power Supply: 220V, 50/60Hz
• Power Consumption: 1200W

---

Dimensions & Weight

• Machine Dimensions (L × W × H): 167cm × 155cm × 72cm (300kg)
• Package Dimensions (L × W × H): 189cm × 189cm × 95cm (350kg)

---

Why Choose the LC-6090 UV Flatbed Printer?

• Versatile printing on rigid and flexible materials, including cylindrical objects
• High precision and color accuracy with white and varnish capabilities
• Durable and efficient with automatic ink circulation, suction platform, and pre-heating system
• Ideal for small and large businesses looking to expand their product range

Upgrade your printing capabilities today.
