Description

UV DTF (Direct-to-Film):
- Refers specifically to printing on a transfer film that can later be applied to various objects.

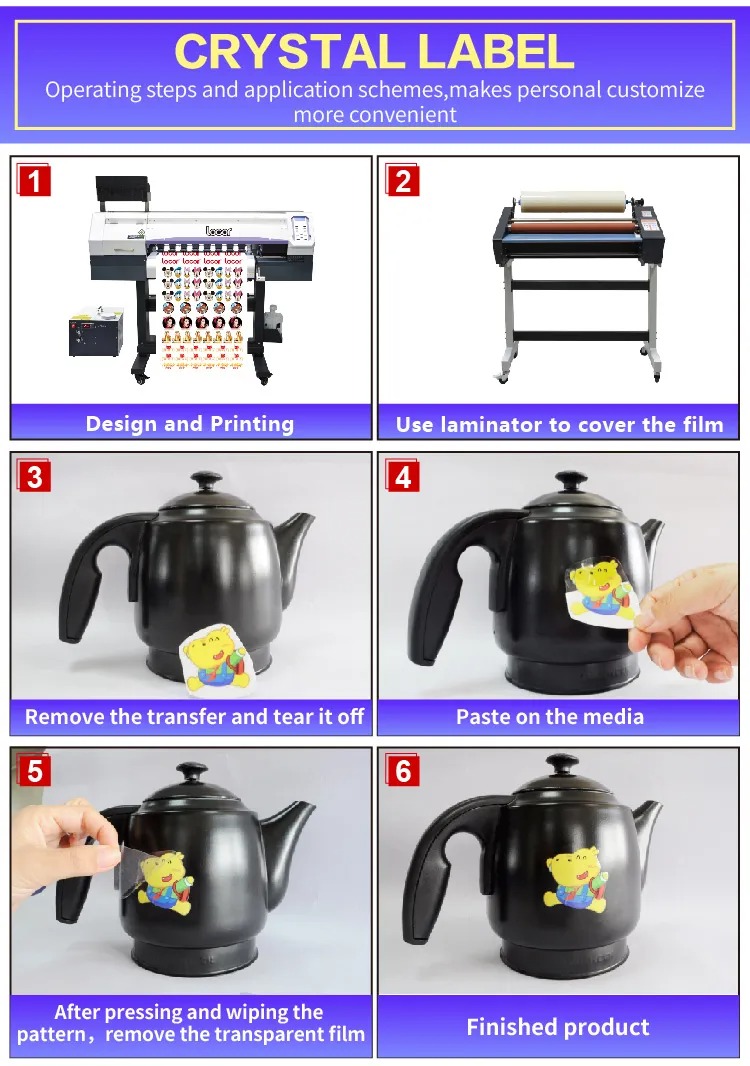

- The process involves:
  1. Printing the design in reverse on a special adhesive film.
  2. Applying a lamination layer.
  3. Transferring the print to the desired surface.
- Great for irregular surfaces or objects that can’t fit into a printer.
UV Direct-to-Object Printing:
- This is commonly just referred to as UV Printing or UV Direct Printing.
- It involves printing directly onto the surface of an object using UV inks.
- UV light cures the ink instantly, ensuring strong adhesion and durability.
- Suitable for flat or slightly curved objects like phone cases, awards, or signage.

Key Differences:

UV DTF: Indirect printing method using a film for transfers. Versatile for odd shapes and surfaces.
UV Direct Printing: Direct method for printing straight onto the object. Best for items that can fit into the machine’s print area.

Each has its advantages, depending on your production needs.

Locor LC-U600

60cm (24-inch) UV Roll-to-Roll DTF Printer – A2 Size

A cost-effective, high-performance UV DTF printer designed for transfer film printing on a wide range of materials including wood, glass, leather, acrylic, metal, and more. Ideal for custom printing businesses, signage makers, promotional product manufacturers, and print shops.

Product Overview

Model: LC-U600
Brand: Locor
Printer Type: UV Roll-to-Roll DTF Printer
Printing Width: 60cm (24 inch)
Structure: Roll-to-Roll (Flat-bed Cylinder Press system)
Operation: Fully Automatic
Interface: USB
Operating System: Windows 10
Languages: Chinese / English

Key Features

Supports AB Transfer Film Printing
LED UV Curing System
High-temperature coated rubber roller (supports gilding/foil effects)
Film balance control system (smooth lamination)
Pre-finished film receiver + post-protective film receiver
Cost-effective and wide application range
Online technical support from professional engineers

Print Specifications

Item	Specification

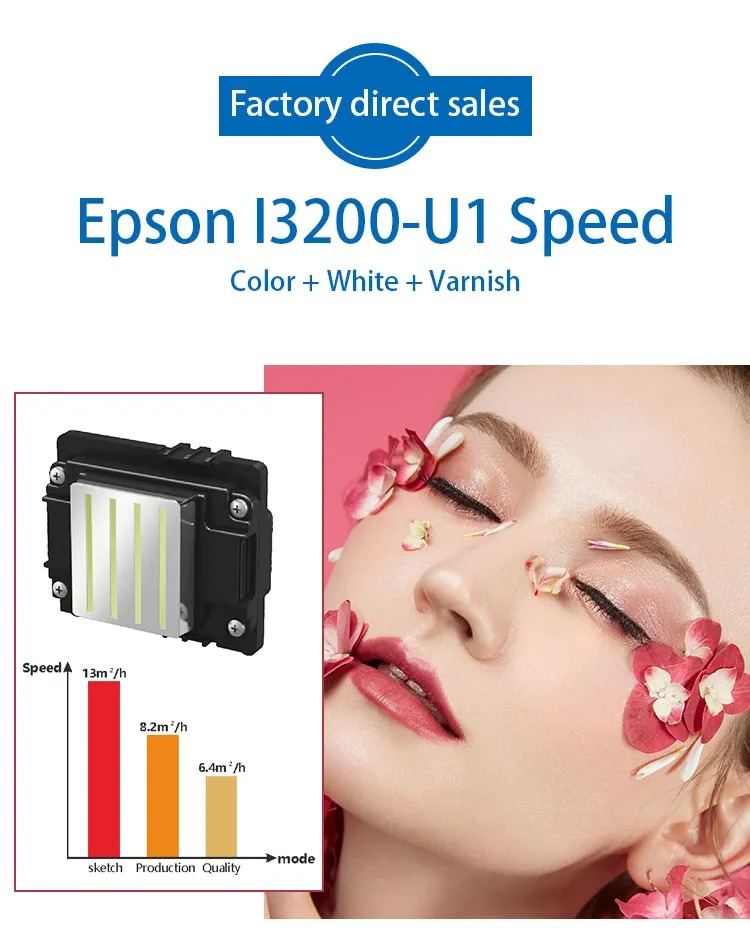

Printhead Type	Epson XP600 / I3200-U1
Number of Printheads	2 or 3 pcs
Printhead Height	Up to 400mm
Printing Speed	8㎡/hour
Ink Type	UV Ink
Ink Colors	C / M / Y / K / W / V
Curing System	LED UV Curing Lamp
Printing Medium	AB Transfer Film

Working Environment

Temperature: 20–28°C
Humidity: 38–65%

Power Requirements

Drum Heating: 500W
Equipment Power: 650W

Machine Size & Weight

Item	Measurement
Machine Size	1850 × 940 × 1550 mm
Net Weight	200 kg
Gross Weight	210 kg
Packing	Plywood Case

Applications

This UV DTF printer can be used on:

Wood
Glass
Leather
Acrylic
Metal
Plastic
Ceramic
Packaging materials
Promotional items
Custom labels & stickers

Perfect for:

Print shops
Custom merchandise businesses
Advertising & signage companies
Gift & personalization businesses

What You Can Do With This Printer

✔ Print high-quality UV transfer stickers
✔ Produce durable, waterproof decals
✔ Print white + color + varnish effects
✔ Create textured and embossed-style finishes
✔ Apply prints to irregular or curved surfaces
✔ Offer custom branding services
