Name: UV Hybrid Printer 3.2m with 8 pcs 1024i print heads
SKU: 21071
Availability: BackOrder

Description

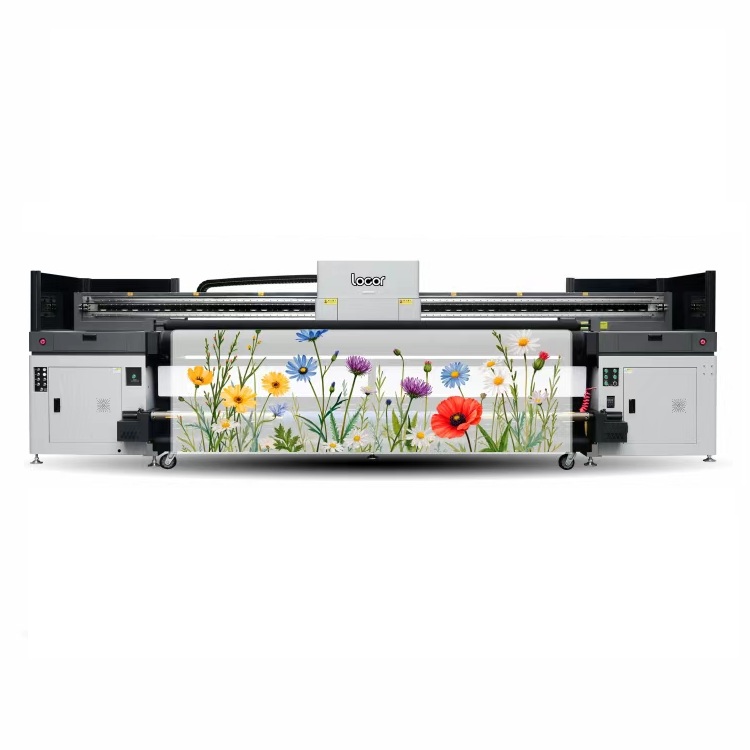

LC-W3200 3.2m UV Hybrid Printer: Grand Format Versatility

Expand your horizons with the LC-W3200 3.2m UV Hybrid Printer. This grand-format powerhouse is engineered for high-demand production environments that require seamless switching between massive 3.2m rolls and heavy rigid substrates. Combining the precision of a flatbed with the speed of a roll-to-roll system, the LC-W3200 is the ultimate solution for billboards, grand-format decor, and industrial-scale branding.

Top-Tier Industrial Features

Extra-Wide 3.2m Capability: Print on full-width grand-format media, from oversized PVC banners to large-scale fabric backdrops and 3.2m wide rigid panels.
Dual-Purpose Mesh Belt System: The industrial-grade conveyor belt system allows for the stable feeding of elastic fabrics, flexible vinyl, and rigid boards up to 80mm thick.
High-Speed Productivity: Powered by 1024i printheads, this machine delivers exceptional throughput without sacrificing the fine detail required for close-range indoor signage.
Superior UV-LED Curing: Advanced water-cooled LED lamps ensure instant ink curing on both heat-sensitive films and thick industrial materials, allowing for immediate finishing and delivery.

Technical Specifications

Feature	Specification
Max Printing Width	3200mm
Printheads	8 pcs 1024i print heads
Media Thickness	0.1mm – 80mm
Ink System	Negative Pressure CISS (3500ml tanks)
Color Configuration	K, C, M, Y + W + V (Optional Lc, Lm)
Max Resolution	720 x 2400 DPI
Feeding System	Industrial Mesh Belt with Vacuum Suction
RIP Software	MainTop 7.0 UV Edition / PhotoPrint / Onyx

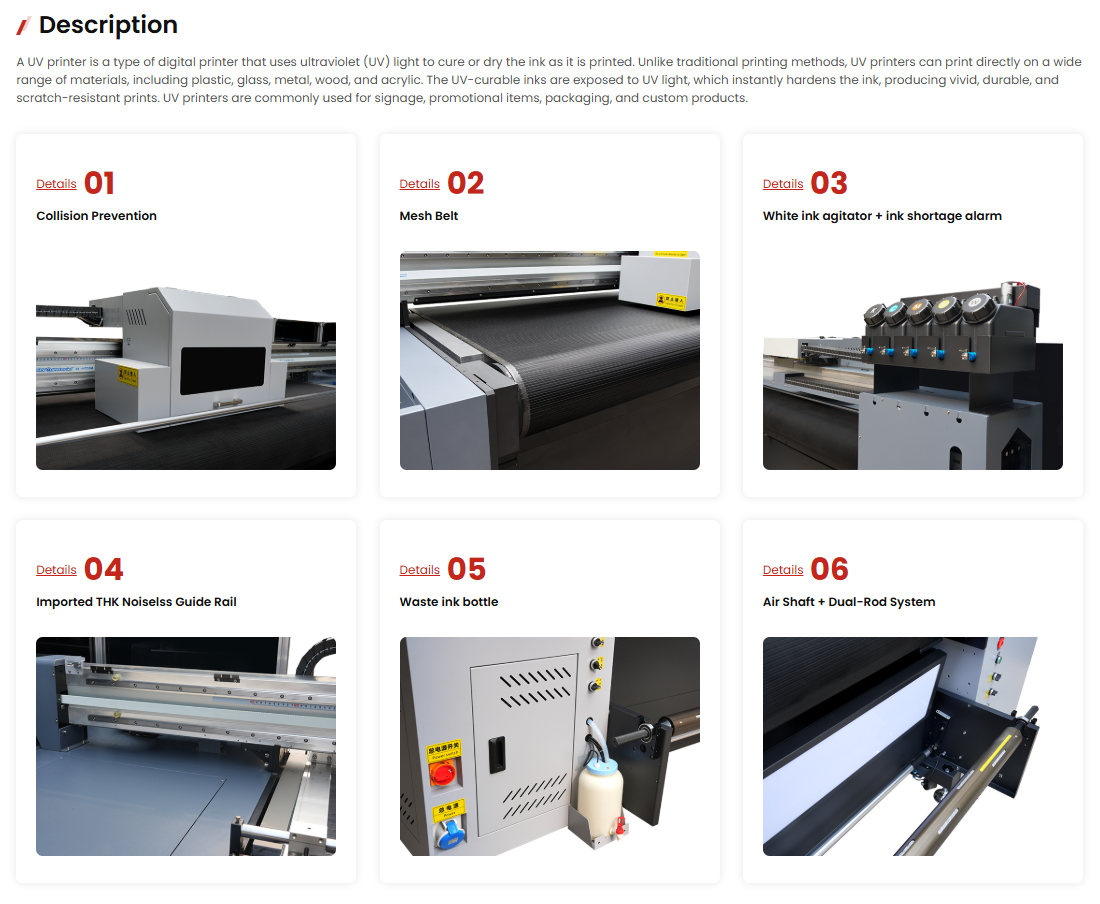

Advanced Engineering

1. Multi-Zone Vacuum Table
- The 3.2m bed is equipped with a powerful multi-zone vacuum system. This allows you to toggle suction only where your material is placed, ensuring that even smaller rigid boards stay perfectly flat during high-speed passes.
2. Precision Tension Control
- For roll-to-roll operations, the LC-W3200 uses an automated air-shaft system to maintain constant tension. This prevents “telescoping” on long 3.2m runs, ensuring perfect registration from start to finish.
3. Safety & Head Protection
- Built-in anti-collision sensors monitor the media surface in real-time. If the sensor detects a buckle in the material or an misplaced object, the carriage stops instantly to protect the delicate Epson i3200-U1 nozzle plates.

High-Volume Applications

Outdoor Advertising: Grand-format billboards, building wraps, and stadium mesh.
Exhibition & Events: Seamless 3.2m fabric backdrops, pop-up displays, and floor graphics.
Industrial Rigid Printing: Large-format glass partitions, oversized wood panels, and composite aluminum sheets.
Retail Branding: High-impact window displays, backlit lightboxes, and textured wall coverings.
